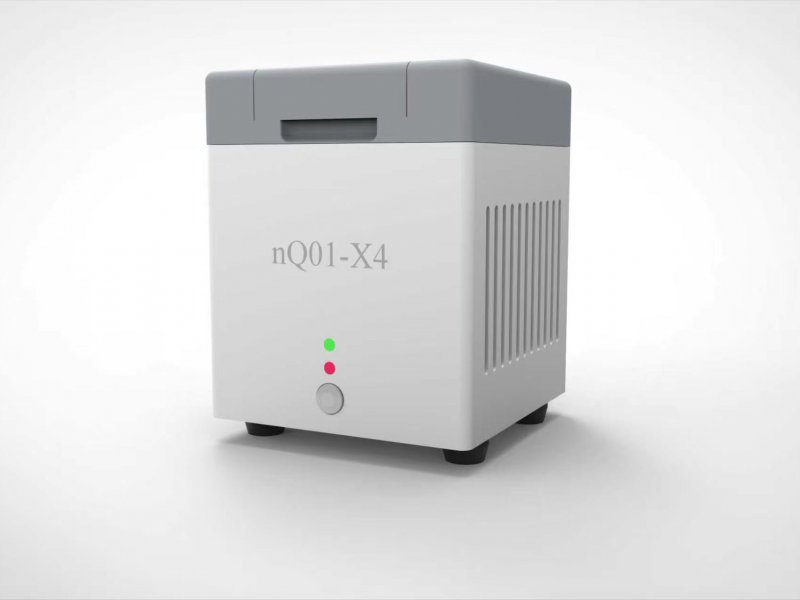

The nQ01-X4 is a handheld real-time quantitative PCR analyzer, specially designed for rapid and convenient single-sample detection. It is equipped with 4 channels of fluorescence and integrates the core functions of a PCR laboratory into a palm-sized body.
Portable design: This instrument is only the size of a palm and is designed to be easy to carry. It can be powered by a mobile power bank charger, enabling users to complete nucleic acid amplification and detection experiments at any time and any place, whether indoors or outdoors.

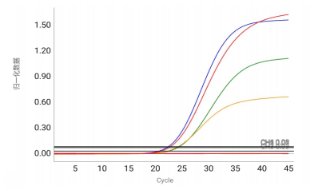

Data management: The experimental process, test results, and amplification curves can all be monitored in real time through the computer software.
Open system: This instrument features an open platform and can be applied to various PCR reaction reagents.
Parameter | Specification |
Model | nQ01-X4 |
Capacity | 1 |
Consumables | 0.2 mL clear PCR tube |
Sample Volume | 10–50 μL |
Heating/Cooling method | Peltier |
Max heating rate | 8 °C/s |
Temperature range | 4–100 °C |
Accuracy | ±0.1 °C |
Light source | High-efficiency single-color LED |
Detector | SiPMT |
Excitation/Emission wavelength | 455–650 nm / 510–750 nm |
Detection channels | 4 |
Supported dyes | FAM/SYBR Green, VIC/JOE/HEX/TET, ROX/Texas Red, Cy5/LIZ |
Multiplexing | 4 |
Power | 100–240 VAC, 50/60 Hz |
Dimension | 70 × 70 × 90 mm, 0.4 kg |
Animal epidemic disease
CDC screening
Research laboratories
Food safety
Field portable testing
Molecular detection
